Intel’s HD 4600 Graphics: Another Review

Better than last year, still not enough to match AMD...

4th Generation Intel« CoreÖ i7 Processor Badge 65x87 Intels HD 4600 Graphics: Another ReviewWe only briefly looked at the performance of Intel’s HD 4600 graphics solution in our review of Intel’s new Core i7-4770K. But now that we’ve had a chance to test AMD’s just released HD 8670D, the GPU portion of the A10-6800K, and get a handle on its gaming performance, we’re going back to Intel’s HD 4600 to find the highest quality setting at which games are still playable on Intel’s desktop graphics solution. In our review of AMD’s HD 8670D we noted that it was capable of producing playable frame-rates in AAA games at 1080P. Of course we had to use the low-quality presets more often than not, but all the same Richland enables mainstream computers to play modern games at the most commonly used resolution for PC gaming. Which is more than we can say for any of Intel graphics solutions, until now.

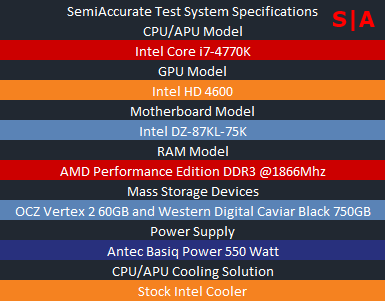

Test System Specifications Haswell Intels HD 4600 Graphics: Another Review

The test system in this article is configured in exactly the same way as our system was in our original desktop Haswell review. We’ll be looking at eleven games in this article; slightly more than our HD 8670D review. Hopefully you’ll find our results enlightening.

BF3Haswell Intels HD 4600 Graphics: Another Review

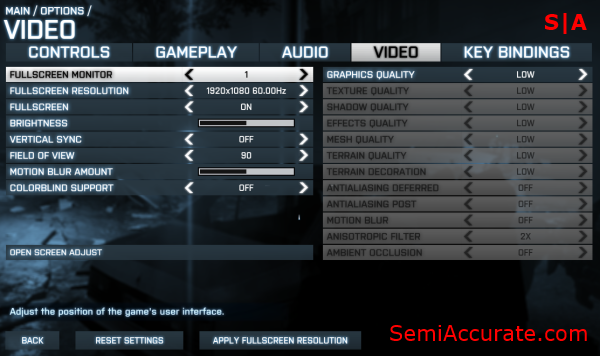

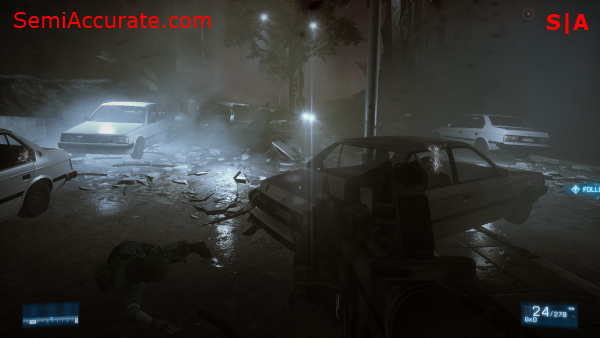

Battlefield 3 was playable at 1080P on Intel HD 4600. This is a significant improvement over the HD 4000 which produced unplayable frame-rates in this game unless you dropped the resolution down to 720P.

BF3HaswellSettings Intels HD 4600 Graphics: Another Review BFBC2Haswell Intels HD 4600 Graphics: Another Review

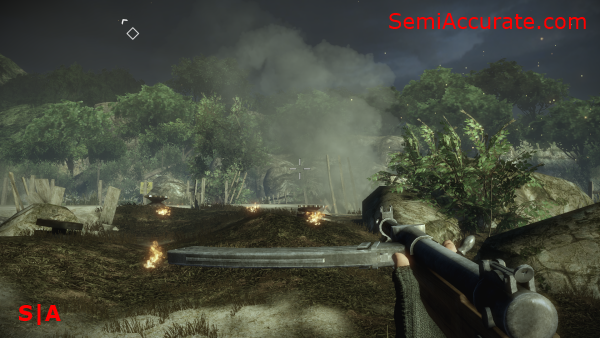

In Bad Company 2 the HD 4600 also performed admirably, easily besting the HD 4000 which required all low settings.

BFBC2HaswellSettings Intels HD 4600 Graphics: Another Review BioShockInfiniteHaswell Intels HD 4600 Graphics: Another Review

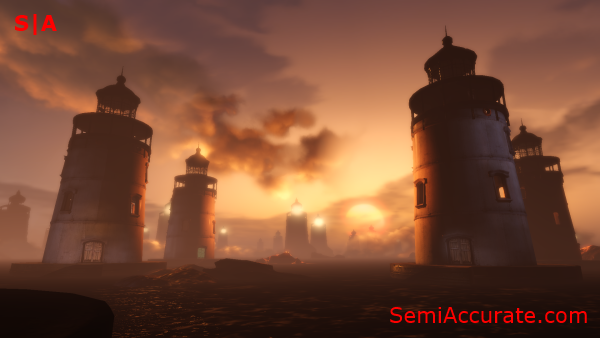

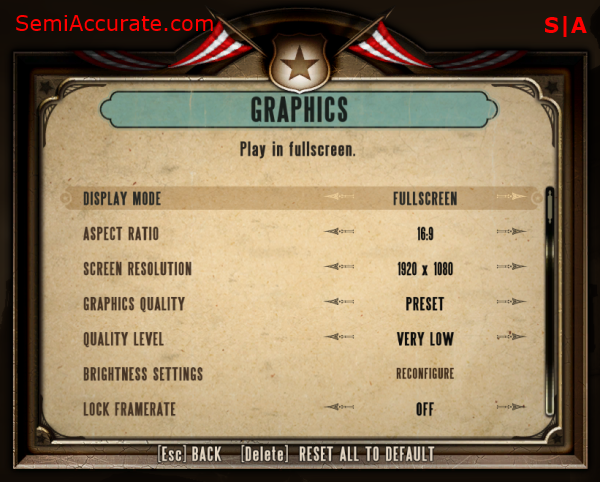

Bioshock Infinite was playable on the HD 4600 in 1080P, but it was at the absolute minimum quality settings.

BioShockInfiniteHaswellSettings Intels HD 4600 Graphics: Another Review CivVHaswell1 Intels HD 4600 Graphics: Another Review

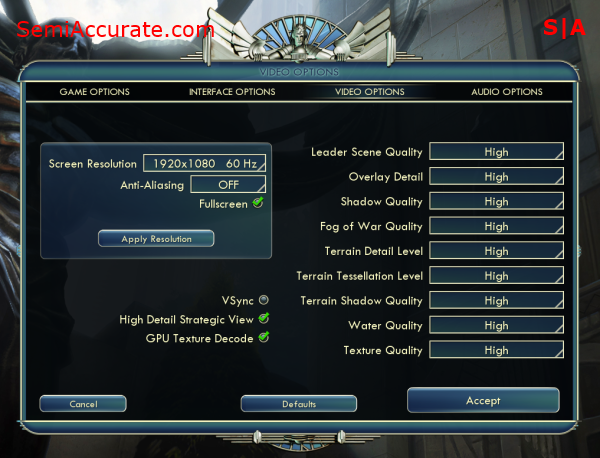

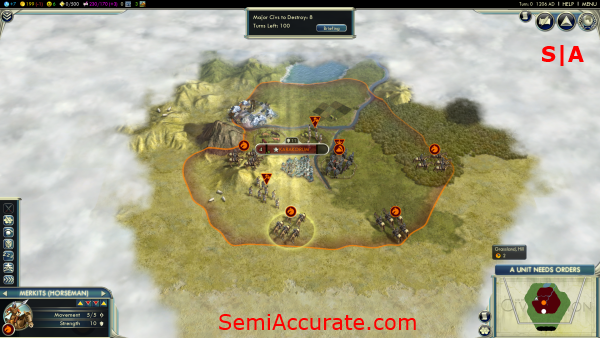

Civilizations V is definitely a bright spot for the HD 4600 which can run this game at high settings in 1080P.

CivVHaswellSettings Intels HD 4600 Graphics: Another Review crysis3Haswell Intels HD 4600 Graphics: Another Review

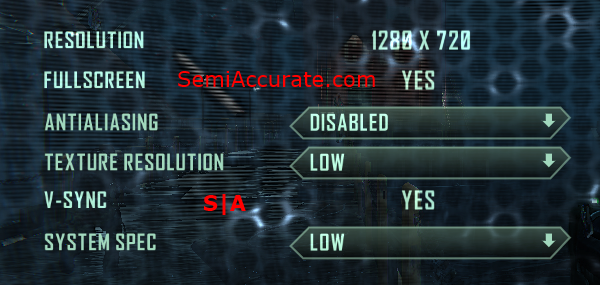

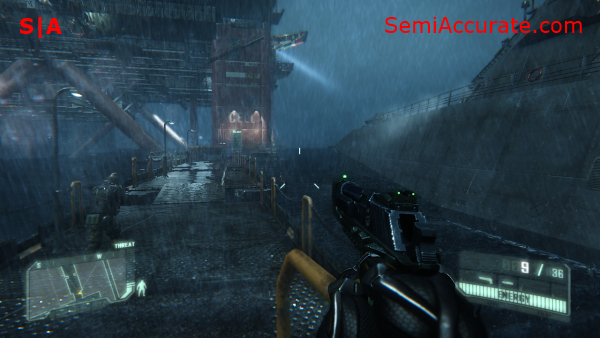

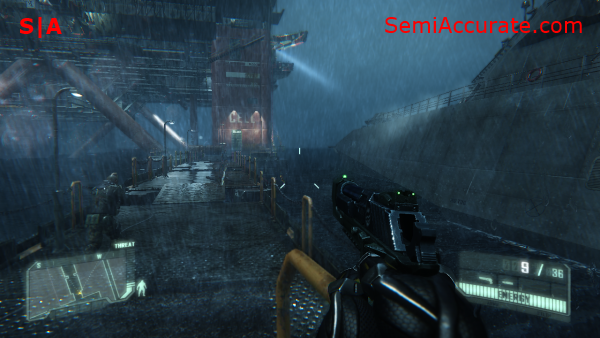

Crysis 3 has proven itself to be a very resource intensive game even at the lowest quality settings. We were forced to drop the game’s resolution to 720P to get playable frame rates.

crysis3HaswellSettings Intels HD 4600 Graphics: Another Review csgoHaswell Intels HD 4600 Graphics: Another Review

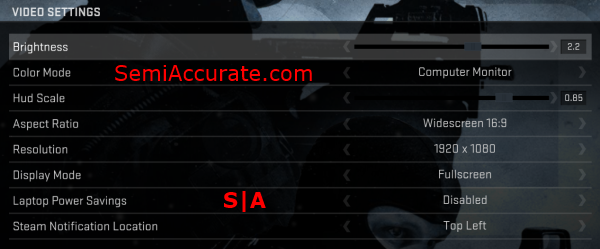

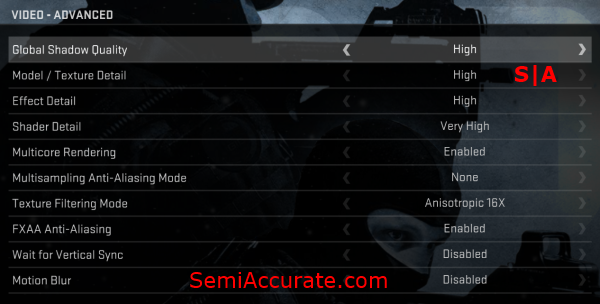

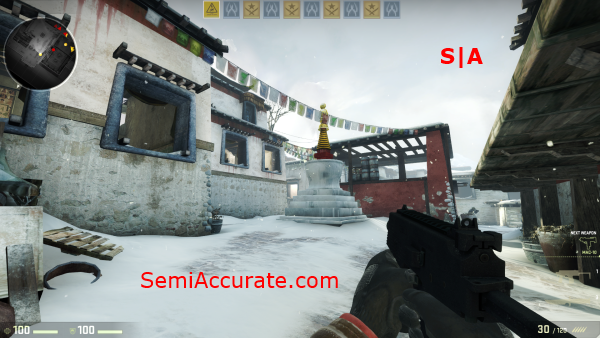

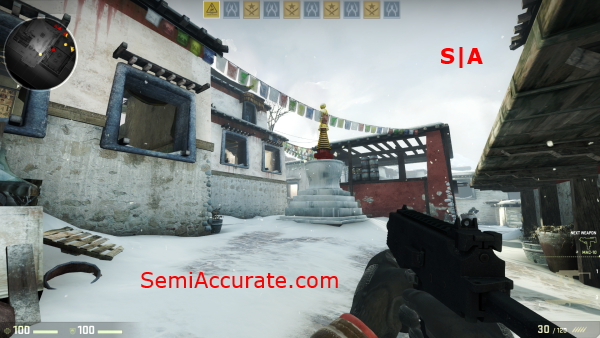

Counter-Strike: Global Offensive is also very playable on the HD 4600. We were able to use high quality options and run the game in 1080P.

csgoHaswellSettings1 Intels HD 4600 Graphics: Another Review csgoHaswellSettings2 Intels HD 4600 Graphics: Another Review dota2Haswell Intels HD 4600 Graphics: Another Review

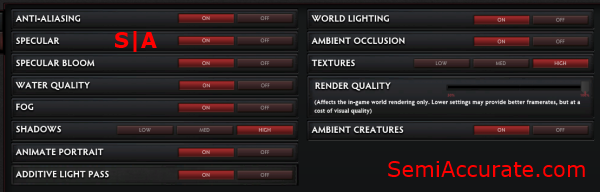

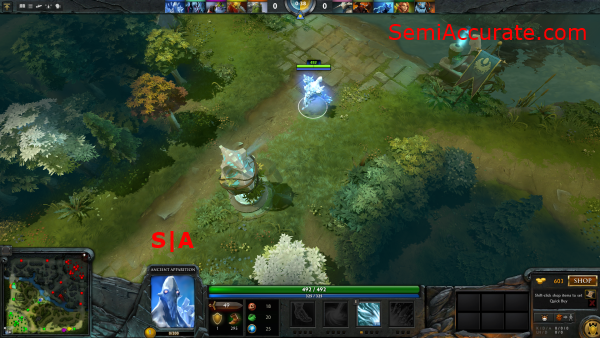

With Intel’s HD 4600 you can completely max out the quality settings for DOTA2 at 1080P.  The GPU prowess of the HD 4600 should prove to be a godsend for hardcore MOBA gamers.

dota2HaswellSettings1 Intels HD 4600 Graphics: Another Review dota2HaswellSettings2 Intels HD 4600 Graphics: Another Review HKShipHaswell Intels HD 4600 Graphics: Another Review

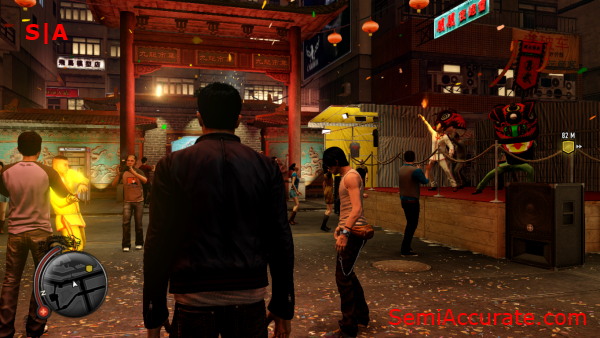

Sleeping Dogs is playable on the HD 4600, but we did have to drop the games resolution to a bit above 720P to coax a decent frame out of it.

HKShipHaswellSettings Intels HD 4600 Graphics: Another Review Metro2033Haswell Intels HD 4600 Graphics: Another Review

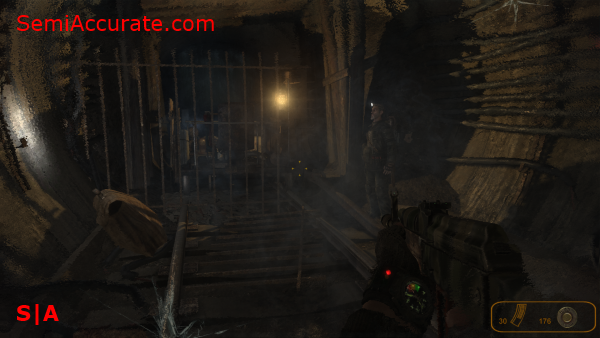

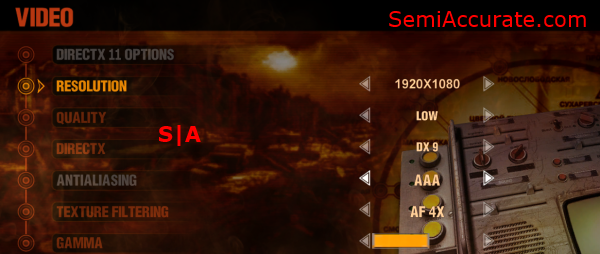

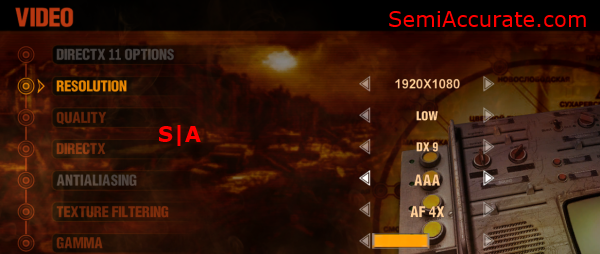

Metro 2033 is playable in 1080P on the HD 4600. This is a big upgrade from the HD 4000 which only produced playable framerates at 720P.

Metro2033HaswellSettings Intels HD 4600 Graphics: Another Review TombRaiderHaswell Intels HD 4600 Graphics: Another Review

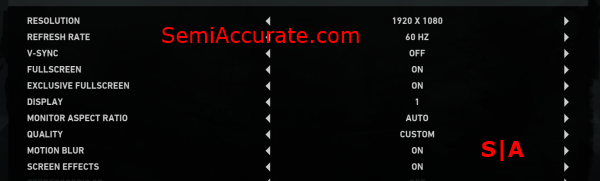

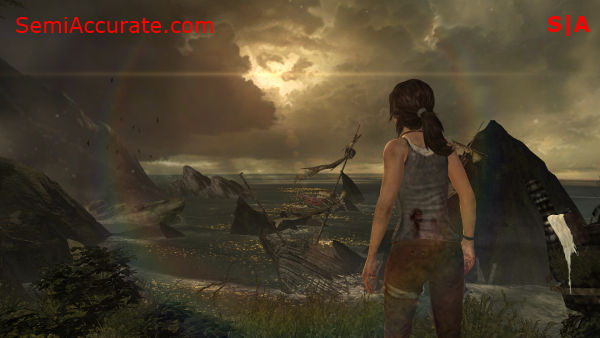

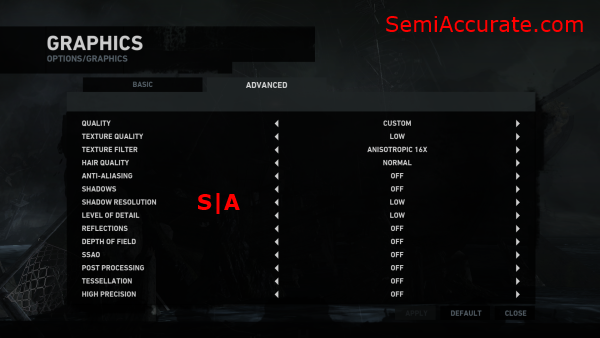

Tomb Raider is playable game at 1080P on the HD 4600, although the game’s visuals definitely suffer from using such low quality settings.

TombRaiderHaswellSettings Intels HD 4600 Graphics: Another Review TombRaiderHaswellSettings2 Intels HD 4600 Graphics: Another Review

The HD 4600 slots in right where our original testing suggested. It’s significantly faster than the HD 4000, but it doesn’t give you the same level of quality that the HD 8670D can provide. It’s certainly not as powerful as AMD’s top APU-based graphics solution, but it can still allow you to play more casual games like Civ V and DOTA 2 at good quality settings. Our in-depth testing has revealed pretty much what we’d inferred from the initial benchmarks. The HD 4600 is an improvement, but it’s not enough to beat out AMD’s APUs; at least on the desktop.S|A
