XBox One details in pictures

Hot Chips 25: Microsoft opens up, more to come

Xbox One Logo 87x27 XBox One details in picturesMicrosoft outed some technical details about the XBox One SoC today at Hot Chips 25. SemiAccurate will bring you an analysis and more details soon, but until then, enjoy these slides.

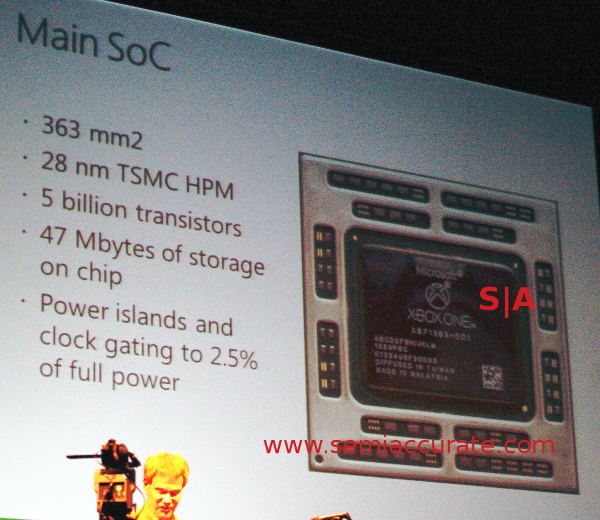

XBox One SOC XBox One details in pictures

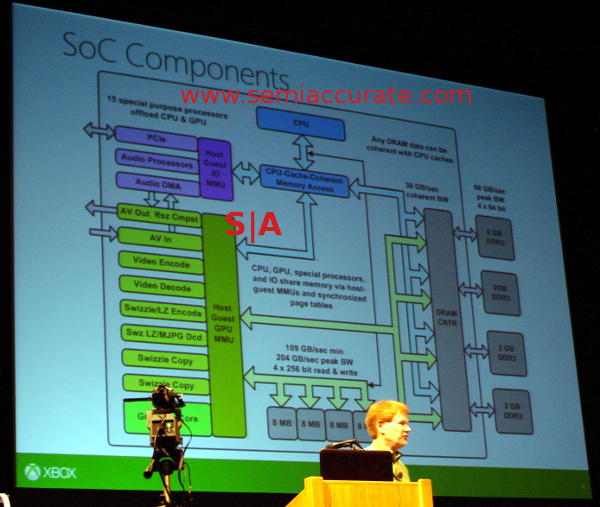

XBox One SoC and some details

XBox One diagram XBox One details in pictures

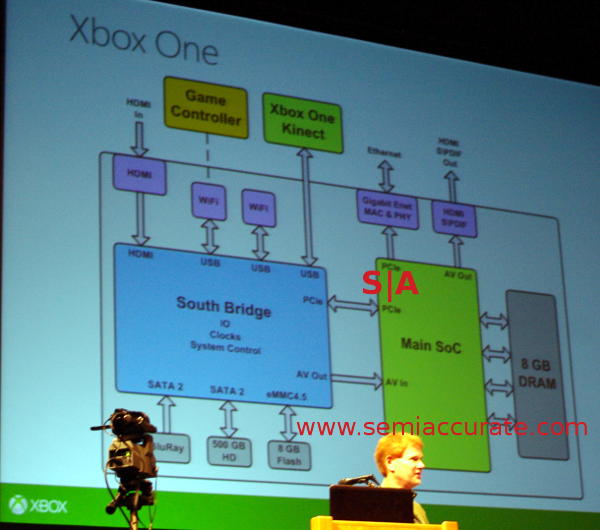

XBox One system diagram

XBO diagram WM XBox One details in pictures

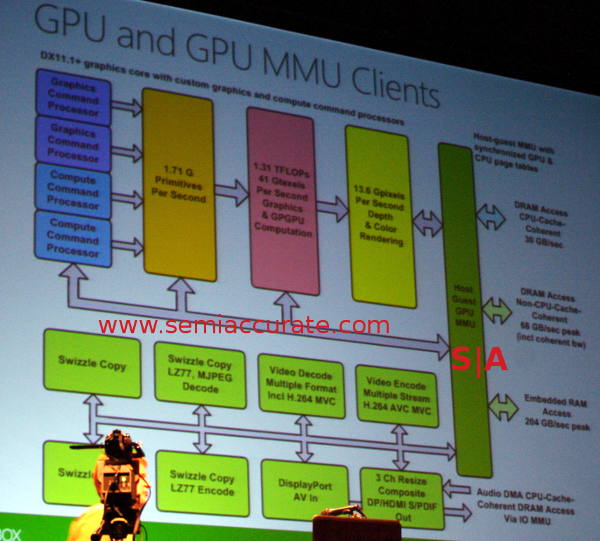

XBox One CPU diagram

XBO GPU WM XBox One details in pictures

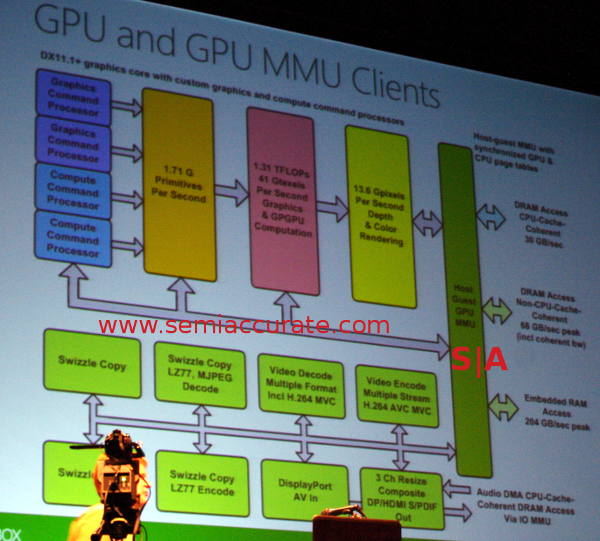

XBox One GPU diagram

XBO Audio WM XBox One details in pictures

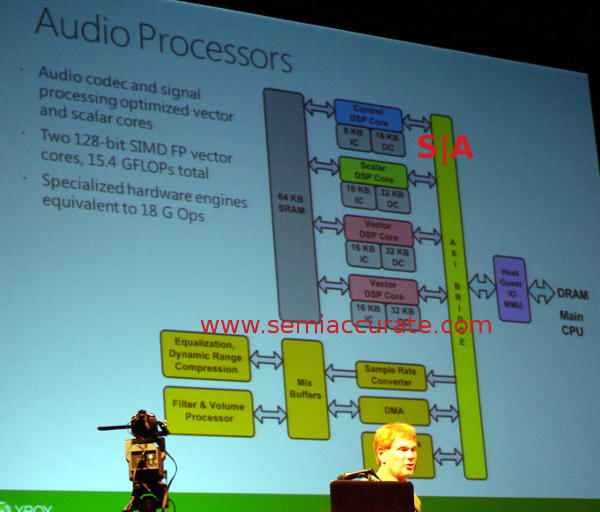

XBox One audio diagram

That’s it for now, more and deeper coming soon.S|A
